Java调用海康HCUsbSDK制卡刷卡读卡
发布时间：2020-11-18 14:50编辑：zj 阅读：
文章分类：
Java互动QQ群：170915747
根据HCUsbSDK接口文档和JAVADEMO开发的一个发卡、读卡、刷卡的程序

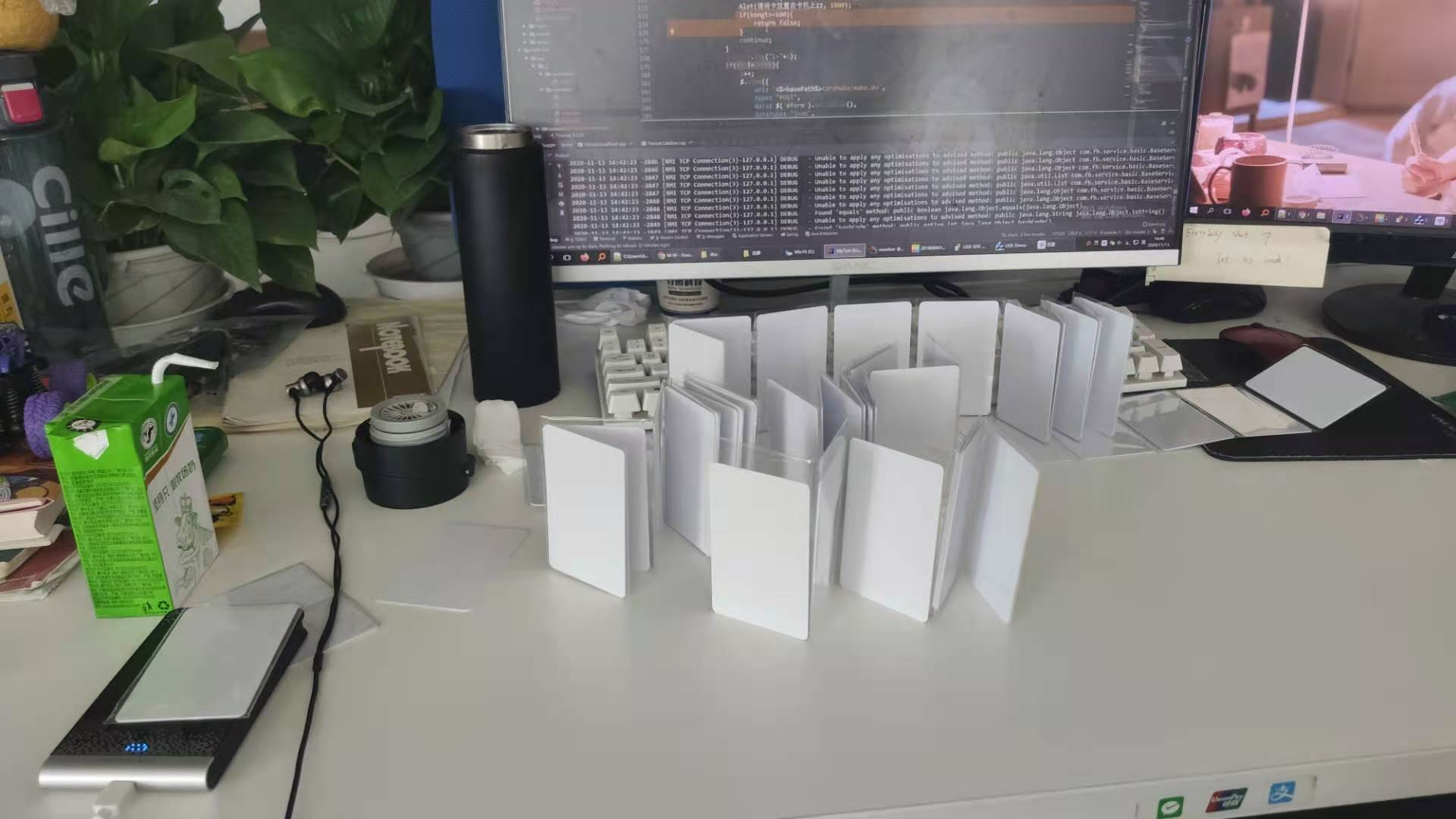

淘宝买的空白UID卡，卡里需要存入员工工号和卡编号，在web后台来操作制卡、刷卡
简单记录下，方便以后开发相似的功能可以直接拿去用
发卡器型号是【海康威视DS-K1F100-D8E】

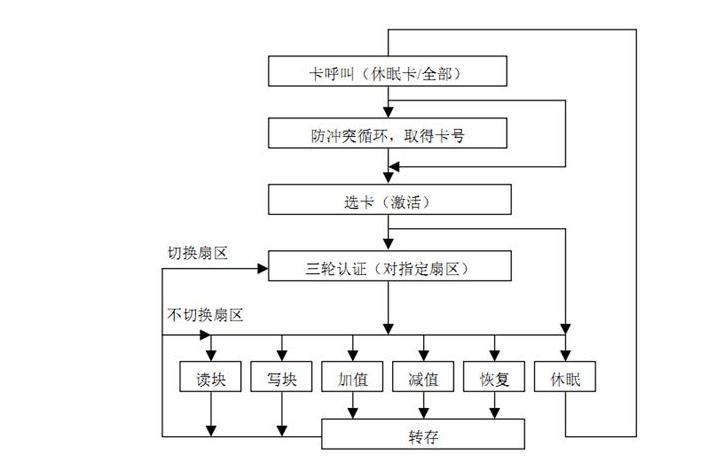

Mifare卡操作
登录设备、激活卡、密码验证
/**
* @param args the command line arguments
*/
static HCUsbSDK hcusbsdk = HCUsbSDK.INSTANCE;
static fDEVInfoCallBack fdeviceCallBack = null;// 报警回调函数实现
static HCUsbSDK.USB_SDK_DEVICE_INFO StruDevceInfo = new HCUsbSDK.USB_SDK_DEVICE_INFO();
static boolean bDevCallBack = false;
public static class fDEVInfoCallBack implements HCUsbSDK.fEnumDeviceCallBack {
@Override
public void invoke(HCUsbSDK.USB_SDK_DEVICE_INFO pDevceInfo, Pointer pUser) {
if ((pDevceInfo.szDeviceName[0] == 'D') && (pDevceInfo.szDeviceName[1] == 'S')
&& (pDevceInfo.szDeviceName[2] == '-') && (pDevceInfo.szDeviceName[3] == 'K')) {
StruDevceInfo = pDevceInfo;
String strName = new String(pDevceInfo.szDeviceName);
System.out.println("枚举到的设备信息：" + strName);
bDevCallBack = true;
}
}
}
//登录设备
private static NativeLong login() {
int iError = 0;
boolean bInit = hcusbsdk.USB_SDK_Init();
if (bInit) {
hcusbsdk.USB_SDK_SetLogToFile(3, "C:/USBSDKLog", false);
}
if (fdeviceCallBack == null) {
fdeviceCallBack = new fDEVInfoCallBack();
}
boolean bEnum = hcusbsdk.USB_SDK_EnumDevice(fdeviceCallBack, null);
if (!bEnum) {
iError = hcusbsdk.USB_SDK_GetLastError();
System.out.println("枚举失败，错误码为" + iError);
return null;
}
HCUsbSDK.USB_SDK_USER_LOGIN_INFO struUserLoginInfo = new HCUsbSDK.USB_SDK_USER_LOGIN_INFO();
struUserLoginInfo.dwSize = struUserLoginInfo.size();
struUserLoginInfo.dwTimeout = 5000;
while (true) {
if (bDevCallBack) {
struUserLoginInfo.dwVID = StruDevceInfo.dwVID;
struUserLoginInfo.dwPID = StruDevceInfo.dwPID;
struUserLoginInfo.szUserName = "admin".getBytes();
struUserLoginInfo.szPassword = "12345".getBytes();
struUserLoginInfo.szSerialNumber = StruDevceInfo.szSerialNumber;
break;
}
}
struUserLoginInfo.write();
// System.out.println("dwSize:" +struUserLoginInfo.dwSize );
// System.out.println("dwVID:" +struUserLoginInfo.dwVID );
// System.out.println("dwPID:" +struUserLoginInfo.dwPID );
// System.out.println("szUserName:" + new String(struUserLoginInfo.szUserName).trim() );
// System.out.println("szPassword:" +new String(struUserLoginInfo.szPassword).trim() );
// System.out.println("szSerialNumber:" +new String(struUserLoginInfo.szSerialNumber).trim() );
HCUsbSDK.USB_SDK_DEVICE_REG_RES struRegRes = new HCUsbSDK.USB_SDK_DEVICE_REG_RES();
struRegRes.dwSize = struRegRes.size();
struRegRes.write();
NativeLong lUserID = hcusbsdk.USB_SDK_Login(struUserLoginInfo, struRegRes);// 登录设备
if (lUserID.intValue() == -1) {
iError = hcusbsdk.USB_SDK_GetLastError();
System.out.println("登陆失败，错误码为" + iError);
hcusbsdk.USB_SDK_Logout(lUserID);
} else {
System.out.println("登陆成功");
}
return lUserID;
}
//激活卡
private static String active(NativeLong lUserID) {
int iError = 0;
HCUsbSDK.USB_SDK_WAIT_SECOND struWaitSecond = new HCUsbSDK.USB_SDK_WAIT_SECOND();
struWaitSecond.dwSize = struWaitSecond.size();
struWaitSecond.byWait = 0;
struWaitSecond.write();
HCUsbSDK.USB_SDK_ACTIVATE_CARD_RES struActivate = new HCUsbSDK.USB_SDK_ACTIVATE_CARD_RES();
struActivate.dwSize = struActivate.size();
struActivate.byCardType = 1;
struActivate.write();
HCUsbSDK.USB_CONFIG_INPUT_INFO struInput = new HCUsbSDK.USB_CONFIG_INPUT_INFO();
struInput.lpInBuffer = struWaitSecond.getPointer();
struInput.dwInBufferSize = struWaitSecond.size();
struInput.write();
HCUsbSDK.USB_CONFIG_OUTPUT_INFO struOutput = new HCUsbSDK.USB_CONFIG_OUTPUT_INFO();
struOutput.lpOutBuffer = struActivate.getPointer();
struOutput.dwOutBufferSize = struActivate.size();
struOutput.write();
boolean bRet =
hcusbsdk.USB_SDK_GetDeviceConfig(lUserID, HCUsbSDK.USB_SDK_GET_ACTIVATE_CARD, struInput, struOutput);
if (!bRet) {
iError = hcusbsdk.USB_SDK_GetLastError();
System.out.println("激活失败，错误码为" + iError);
return "";
}
struOutput.read();
struActivate.read();
String strSerial = "";
for (int i = 0; i < struActivate.bySerialLen; i++) {
int iSerial = struActivate.bySerial[i] & 0xff;
strSerial = strSerial + new String(Integer.toHexString(iSerial)) + " ";
}
System.out.println("激活成功，卡号：" + strSerial);
return strSerial;
}
//密码验证
private static void valid(NativeLong lUserID) {
int iError = 0;
HCUsbSDK.USB_SDK_SET_M1_PWD_VERIFY struWaitSecond = new HCUsbSDK.USB_SDK_SET_M1_PWD_VERIFY();
struWaitSecond.dwSize = struWaitSecond.size();
struWaitSecond.bySectionNum = hexToByte("1");
struWaitSecond.byCardType = hexToByte("0");
struWaitSecond.byPassword = hexToByteArray("FFFFFFFFFFFF");
struWaitSecond.write();
HCUsbSDK.USB_CONFIG_INPUT_INFO struInput = new HCUsbSDK.USB_CONFIG_INPUT_INFO();
struInput.lpInBuffer = struWaitSecond.getPointer();
struInput.dwInBufferSize = struWaitSecond.size();
struInput.write();
HCUsbSDK.USB_CONFIG_OUTPUT_INFO struOutput = new HCUsbSDK.USB_CONFIG_OUTPUT_INFO();
struOutput.lpOutBuffer = struWaitSecond.getPointer();
struOutput.dwOutBufferSize = struWaitSecond.size();
struOutput.write();
boolean bRet =
hcusbsdk.USB_SDK_SetDeviceConfig(lUserID, HCUsbSDK.USB_SDK_SET_M1_PWD_VERIFY, struInput, struOutput);
if (!bRet) {
iError = hcusbsdk.USB_SDK_GetLastError();
System.out.println("验证失败，错误码为" + iError);
return;
}
System.out.println("验证成功");
}写卡、读卡
private static void write(NativeLong lUserID, String cardNo) {
int iError = 0;
while (cardNo.length() < 32) {
cardNo = "0" + cardNo;
}
if (cardNo.length() > 32) {
cardNo = cardNo.substring(0, 16);
}
HCUsbSDK.USB_SDK_M1_BLOCK_WRITE_DATA struWaitSecond = new HCUsbSDK.USB_SDK_M1_BLOCK_WRITE_DATA();
struWaitSecond.dwSize = struWaitSecond.size();
struWaitSecond.wAddr = hexToByteArray("4");
struWaitSecond.byDataLen = 16;
struWaitSecond.byData = hexToByteArray(cardNo);
struWaitSecond.write();
HCUsbSDK.USB_CONFIG_INPUT_INFO struInput = new HCUsbSDK.USB_CONFIG_INPUT_INFO();
struInput.lpInBuffer = struWaitSecond.getPointer();
struInput.dwInBufferSize = struWaitSecond.size();
struInput.write();
HCUsbSDK.USB_CONFIG_OUTPUT_INFO struOutput = new HCUsbSDK.USB_CONFIG_OUTPUT_INFO();
struOutput.lpOutBuffer = struWaitSecond.getPointer();
struOutput.dwOutBufferSize = struWaitSecond.size();
struOutput.write();
boolean bRet =
hcusbsdk.USB_SDK_SetDeviceConfig(lUserID, HCUsbSDK.USB_SDK_SET_M1_WRITE_BLOCK, struInput, struOutput);
if (!bRet) {
iError = hcusbsdk.USB_SDK_GetLastError();
System.out.println("写卡失败，错误码为" + iError);
makeDevice(lUserID, "3", "3", "2", "3"); //写卡错误是快鸣2下，闪烁2下红灯
return;
}
makeDevice(lUserID, "2", "1", "3", "2"); //写卡成功是慢鸣1下，闪烁2下蓝灯
System.out.println("写卡成功,内容为" + cardNo);
}
private static String read(NativeLong lUserID) {
int iError = 0;
HCUsbSDK.USB_SDK_M1_BLOCK_ADDR struWaitSecond = new HCUsbSDK.USB_SDK_M1_BLOCK_ADDR();
struWaitSecond.dwSize = struWaitSecond.size();
struWaitSecond.wAddr = hexToByteArray("4");
struWaitSecond.write();
HCUsbSDK.USB_SDK_M1_BLOCK_DATA struOut = new HCUsbSDK.USB_SDK_M1_BLOCK_DATA();
struOut.dwSize = struOut.size();
struOut.write();
HCUsbSDK.USB_CONFIG_INPUT_INFO struInput = new HCUsbSDK.USB_CONFIG_INPUT_INFO();
struInput.lpInBuffer = struWaitSecond.getPointer();
struInput.dwInBufferSize = struWaitSecond.size();
struInput.write();
HCUsbSDK.USB_CONFIG_OUTPUT_INFO struOutput = new HCUsbSDK.USB_CONFIG_OUTPUT_INFO();
struOutput.lpOutBuffer = struOut.getPointer();
struOutput.dwOutBufferSize = struOut.size();
struOutput.write();
boolean bRet =
hcusbsdk.USB_SDK_SetDeviceConfig(lUserID, HCUsbSDK.USB_SDK_GET_M1_READ_BLOCK, struInput, struOutput);
if (!bRet) {
iError = hcusbsdk.USB_SDK_GetLastError();
System.out.println("读卡失败，错误码为" + iError);
makeDevice(lUserID, "3", "3", "2", "3");
return "";
}
struOutput.read();
struOut.read();
String strSerial = "";
/*for (int i = 0; i < struOut.byData.length; i++) {
int iSerial = struOut.byData[i] & 0xff;
System.out.println(struOut.byData[i]+"____"+iSerial+"___"+Integer.toHexString(iSerial));
strSerial = strSerial + new String(Integer.toHexString(iSerial)) + "";
}*/
strSerial = bytes2hexStr(struOut.byData);
System.out.println(strSerial);
makeDevice(lUserID, "2", "1", "3", "2");
System.out.println("读卡成功,内容为" + Long.parseLong(strSerial, 16));
return String.valueOf(Long.parseLong(strSerial, 16));
}控制蜂鸣器及显示灯（自定义声音和显示灯闪烁提示）
public static Boolean makeDevice(NativeLong lUserID, String buBeepType, String buBeepCount, String byFlickerType, String byFlickerCount){
HCUsbSDK.USB_SDK_SET_BEEP_AND_FLICKER fukcjer = new HCUsbSDK.USB_SDK_SET_BEEP_AND_FLICKER();
fukcjer.dwSize = fukcjer.size();
fukcjer.byBeepType = hexToByte(buBeepType);
fukcjer.byBeepCount = hexToByte(buBeepCount);
fukcjer.byFlickerType = hexToByte(byFlickerType);
fukcjer.byFlickerCount = hexToByte(byFlickerCount);
fukcjer.write();
HCUsbSDK.USB_CONFIG_INPUT_INFO pInputInfo = new HCUsbSDK.USB_CONFIG_INPUT_INFO();
pInputInfo.lpInBuffer = fukcjer.getPointer();
pInputInfo.dwInBufferSize = fukcjer.size();
pInputInfo.write();
HCUsbSDK.USB_CONFIG_OUTPUT_INFO pOutInfo = new HCUsbSDK.USB_CONFIG_OUTPUT_INFO();
pOutInfo.dwOutBufferSize = fukcjer.size();
pOutInfo.write();
Boolean bb =hcusbsdk.USB_SDK_SetDeviceConfig(lUserID, HCUsbSDK.USB_SDK_SET_BEEP_AND_FLICKER,pInputInfo,pOutInfo);
System.out.println(bb);
return bb;
}上面就是调用sdk的部分了，都是根据接口文档写的，下面是业务代码
获取唯一卡号、写卡、读卡
@RequestMapping(value = "/getKh.do")
@ResponseBody
public Object getKh() {
NativeLong lUserID = login();
String readKh = active(lUserID);
valid(lUserID);
Boolean ss =hcusbsdk.USB_SDK_Logout(lUserID);
System.out.println("只获取卡号方法："+readKh);
System.out.println("退出登录："+ss);
return Ret.ok("获取成功").put("kh",readKh).put("lUserID",lUserID).build();
}
@RequestMapping(value = "/make.do")
@ResponseBody
public Object make() {
Map<String, Object> map = new HashMap<String, Object>();
PageData pd = this.getPageData();
NativeLong lUserID = login();
try {
int cardnum = pd.getInteger("cardnum")+1;
String number = pd.getString("number");
String readKh = active(lUserID);
valid(lUserID);
String cardNo = number+ String.valueOf(cardnum);
System.out.println("写入卡号：" + cardNo+"----"+Long.toHexString(Long.valueOf(cardNo)));
write(lUserID, Long.toHexString(Long.valueOf(cardNo)));
map.put("kh", readKh);
map.put("cardNo", cardNo);
//退出登录
Boolean ss =hcusbsdk.USB_SDK_Logout(lUserID);
pd.put("cardnum", cardnum);
pd.put("status", "1");
memberService.edit(pd);
System.out.println("退出登录："+ss);
return Ret.ok("获取成功").put("kh",readKh).put("cardnum", cardnum).build();
} catch (Exception e) {
//退出登录
hcusbsdk.USB_SDK_Logout(lUserID);
logger.error(e.toString(), e);
}
return "";
}
@RequestMapping(value = "/showmakeRecord.do")
@ResponseBody
public Object showmakeRecord() {
Map<String, Object> map = new HashMap<String, Object>();
PageData pd = this.getPageData();
NativeLong lUserID = login();
try {
String readKh = active(lUserID);
map.put("kh", readKh);
if(Tools.isEmpty(readKh)){
map.put("cardid", "");
}else{
valid(lUserID);
String cardid = read(lUserID);
if(Tools.isEmpty(cardid)||cardid.equals("0")){
map.put("cardid", "0");
hcusbsdk.USB_SDK_Logout(lUserID);
return map;
}
System.out.println("读卡内容："+cardid);
String number = cardid.substring(0,4);
pd.put("number",number);
List<PageData> list = memberService.listAll(pd);
map.put("lUserID", lUserID);
map.put("info", list.get(0));
map.put("cardid", cardid);
//查询该卡当天是否已存记录
PageData rpd = new PageData();
rpd.put("cardNumber", cardid);
Date now = new Date();
SimpleDateFormat sdf = new SimpleDateFormat("yyyy-MM-dd");
rpd.put("createTime", sdf.format(now));
List<PageData> rList = cardRecordService.listAll(rpd);
//如该卡当天未刷，则新增记录
if(rList.size()==0){
PageData savePd = new PageData();
savePd.put("id", Tools.getUniqueId());
savePd.put("name", list.get(0).getString("name"));
savePd.put("cardNumber", cardid);
savePd.put("number", number);
savePd.put("status", "0");
savePd.put("type", "0");
savePd.put("createTime", now);
savePd.put("modifiedTime",now);
savePd.put("isDeleted", 0);
cardRecordService.save(savePd);
}
}
hcusbsdk.USB_SDK_Logout(lUserID);
} catch (Exception e) {
hcusbsdk.USB_SDK_Logout(lUserID);
logger.error(e.toString(), e);
}
return map;
}前端写卡、刷卡操作
var num ;
var totalnum ;
var datetime ;
var overnum ;
var kh ;
var rtkh ;
function khf(i){
console.log("i="+i+"——————num="+num);
if(i>num){
$('.btn-primary').removeAttr('disabled');
return;
}else{
$.ajax({
url: '<%=basePath%>cardMake/getKh.do',
type: "POST",
data:$('#form').serialize(),
dataType: "json",
async: true,
success: function(data){
rtkh = data.kh;
$('#lUserID').val(data.lUserID);
console.log("rtkh="+rtkh+"______kh="+kh);
if(rtkh==""){
var now = new Date().getTime();
Alert("请将卡放置在卡机上", 1000,false);
var tt = now - datetime;
if(tt>10000){
$('#showinfo').html("<h4 style='color:red;'>由于长时间未操作，制卡已停止，已制卡"+overnum+"张，还剩"+totalnum+"张，请重新选择制卡张数开始制卡</h4>");
return;
}
khf(i);
}else{
if(kh != rtkh){
$.ajax({
url: '<%=basePath%>cardMake/make.do',
type: "POST",
data: $('#form').serialize(),
dataType: "json",
async: true,
success: function(data){
kh = data.kh;
datetime = new Date().getTime();
totalnum--;
overnum++;
$('#cardnum').val(data.cardnum);
$('#cardnumover').text(data.cardnum);
// Alert("制卡成功！", 2000);
if(overnum == num){
$('#showinfo').html("<h4 style='color:red;'>制卡完成，本轮共制卡"+overnum+"张</h4>");
}else{
$('#showinfo').html("<h4 style='color:red;'>制卡成功，已制卡"+overnum+"张</h4>");
}
khf(i+1);
}
})
}else{
Alert("该卡已制卡成功，请换一张卡！", 1000,false);
var tt = new Date().getTime() - datetime;
if(tt>10000){
$('#showinfo').html("<h4 style='color:red;'>由于长时间未操作，制卡已停止，已制卡"+overnum+"张，还剩"+totalnum+"张，请重新选择制卡张数开始制卡</h4>");
$('.btn-primary').removeAttr('disabled');
return;
}
khf(i);
}
}
}
})
}
}
function save(){
$('.btn-primary').attr('disabled', 'disabled');
$('#showinfo').html("<h4 style='color:red;'>请将卡放置在卡机上</h4>");
if($('#form').valid()){
num = $('#num').val();
totalnum = $('#num').val();
datetime = new Date().getTime();
overnum = 0;
kh = "";
rtkh = "";
khf(1);
}else{
$('.btn-primary').removeAttr('disabled');
}
}
var datetime ;
var rtkh="" ;
var kh = "";
var i = 0;
function khf(){
$.ajax({
url: '<%=basePath%>cardMake/getKh.do',
type: "POST",
data:$('#form').serialize(),
dataType: "json",
async: true,
success: function(data){
rtkh = data.kh;
console.log(data.lUserID);
$('#lUserID').val(data.lUserID);
console.log("kh="+kh+"___rtkh="+rtkh);
if(kh != rtkh){
$.ajax({
url: '<%=basePath%>cardMake/showmakeRecord.do',
type: "POST",
data:$('#form').serialize(),
dataType: "json",
async: true,
success: function(data){
kh = data.kh;
console.log(data);
datetime = new Date().getTime();
if(data.cardid==""){
var str = "<h3 style='margin-left: 12px;color:red;'>读卡失败,请重试</h3><hr>";
$('#showinfo').html(str);
}else if(data.cardid=="0"){
var str = "<h3 style='margin-left: 12px;color:red;'>读卡失败，该卡为空卡</h3><hr>";
$('#showinfo').html(str);
}else {
i++;
var str = "<h3 style='margin-left: 12px;'>读卡成功 + " + i + "</h3><hr>";
str += "<p style='margin-left: 12px;'>姓名：<span style='color:red;'>" + data.info.name + "</span></p>";
str += "<p style='margin-left: 12px;'>工号：<span style='color:red;'>" + data.info.number + "</span></p>";
str += "<p style='margin-left: 12px;'>卡ID：<span style='color:red;'>" + data.cardid + "</span></p>";
$('#showinfo').html(str);
}
khf()
}
})
}else{
var t2 = new Date().getTime() - datetime;
if(t2>10000){
$('#showinfo').html("<h4 style='color:red;margin-left: 12px;'>读卡完成</h4>");
$('.button1').removeAttr('disabled');
return;
}
khf()
}
}
})
}
function ck(){
$('.button1').attr('disabled', 'disabled');
$('#showinfo').html("<h4 style='color:red;margin-left: 12px;'>请将卡放置在卡机上</h4>");
datetime = new Date().getTime();
khf();
}#去评论一下
标签：#记录代码
版权声明：本博客的所有原创内容皆为作品作者所有
转载请注明：来自ZJBLOG 链接：www.zjhuiwan.cn
+1
「万物皆有时，比如你我相遇」
感谢大佬打赏【请选择支付宝或微信，再选择金额】
使用微信扫描二维码完成支付
